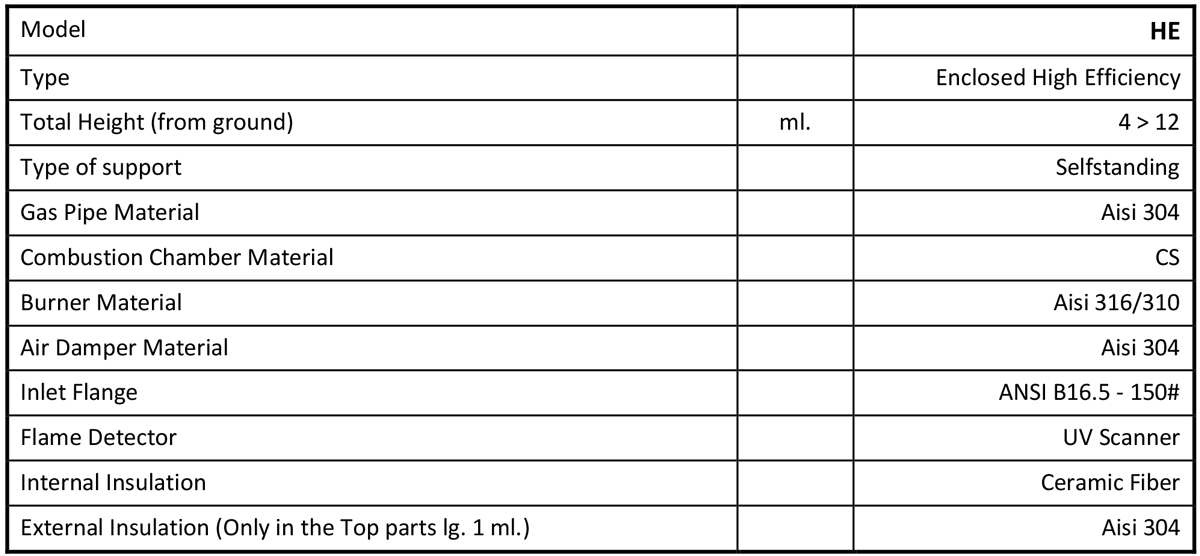

Enclosed High Efficiency – Mod. HE

This type of flare is designed in order to obtain a high combustion efficiency and thus obtain values of CO and NOx downstream of the combustion, very low and traceable truogh dedicate nozzle accessible from outside.
The high efficency flare consist of a burner installed at the base, equipped with a high-energy ignition Pilot and a flame detection system via UV scanner.
The combustion air is conveyed by means of an automatic damper which by means of a Termocouple immersed into the combustion chamber zone, automatically modulates the appropiate air flow, ensuring the constant combustion temperature up to a max.un max. di 1.200 °C (visible and adjustable from control panel).
The supporting structure is composed of a vertical combustion chamber, internally coated with ceramic fiber and specially sized to ensure appropriate residence time of the gas inside the combustion chamber.

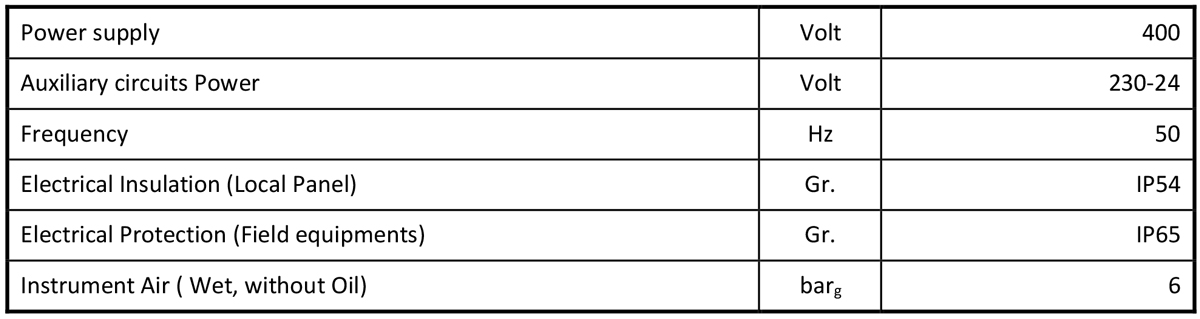

The ignition system is automatic type, operated by the electrical panel installed of the flare’s bottom side and initially involves the pilot’s ignition and subsequently the opening of the main Biogas valve.
This Biogas Flare, unlike to elevated type, develop an influential radiation value at ground, since the flame is fully contained within the combustion chamber.
This model also allows a suitable combustion even in presence of very low amounts of methane in the Biogas ( from 25% to 70% in volume and with a Turn down 5:1).
